MySQL Database

Let's look at how you may read the MySQL database state in vREST NG Application. But the process is the same for any other database as well.

1. Setup the package.json file and install the desired NPM module

   First set up a package.json file in your vREST NG project to install the desired NPM module for your database. For MySQL, you may set up the following package.json file.

   {
     "name": "db-validation",
     "description": "Database Validation Demo",
     "version": "1.0.0",
     "keywords": [
       "vREST NG",
       "npm",
       "db-integration",
       "mysql"
     ],
     "dependencies": {
       "mysql": "^2.18.1"
     }
   }


   Now install the dependencies using the command below:

   npm install


2. Setting up the database connection

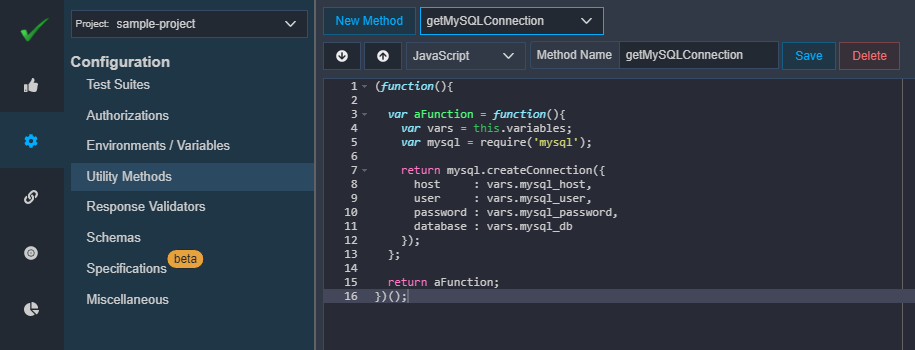

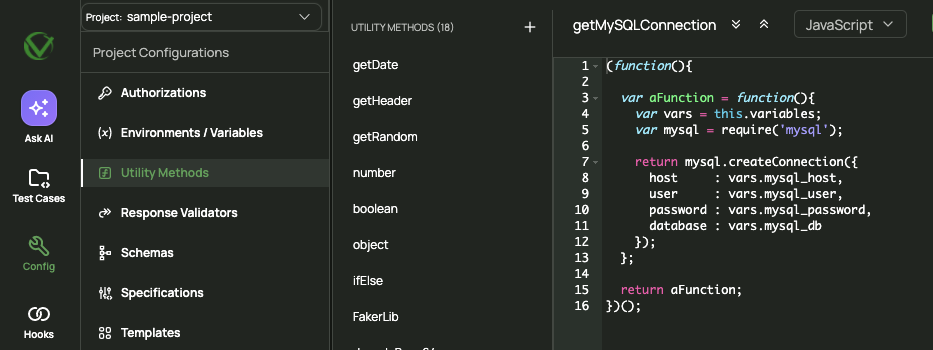

   Now create a utility method to setup the database connection as shown in the figure below:



   You may use the following script for setting up the MySQL connection:

   (function(){

     var aFunction = function(){
       var vars = this.variables;
       var mysql = require('mysql');

       return mysql.createConnection({
         host     : vars.mysql_host,
         user     : vars.mysql_user,
         password : vars.mysql_password,
         database : vars.mysql_db
       });
     };

     return aFunction;
   })();


3. Setup the desired variables for the database connection

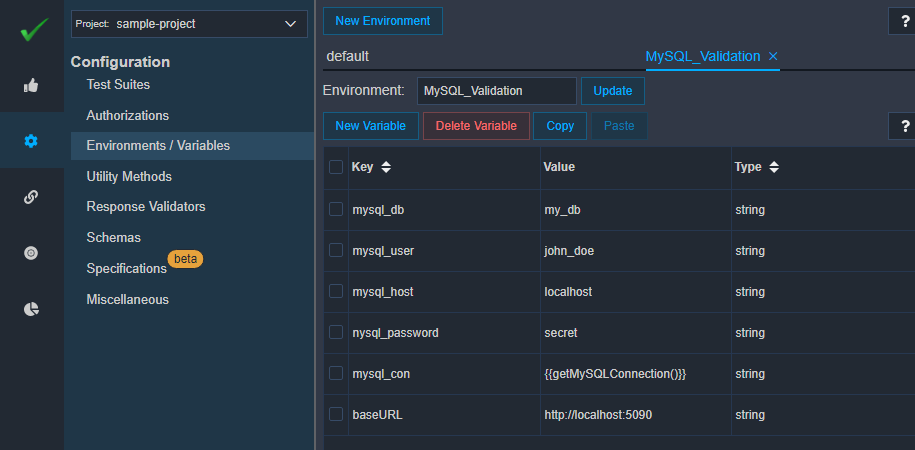

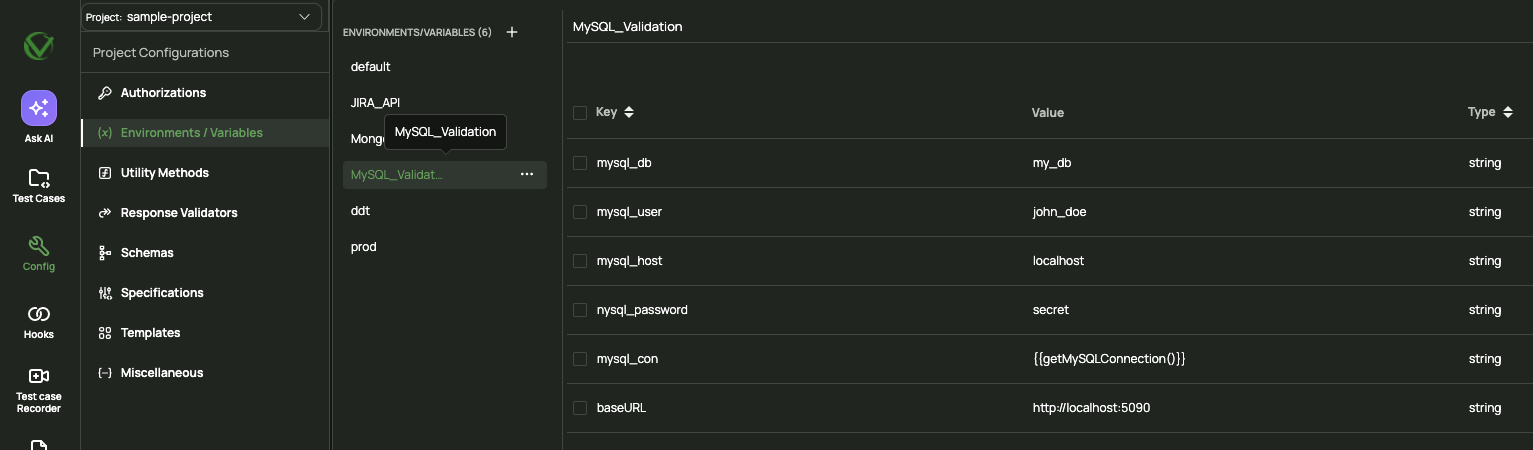

   You may set up any variables required for the database connection. And also set up a variable for your database connection and value will be your utility method created in the previous step as shown in the figure below.



4. Setup the database query method

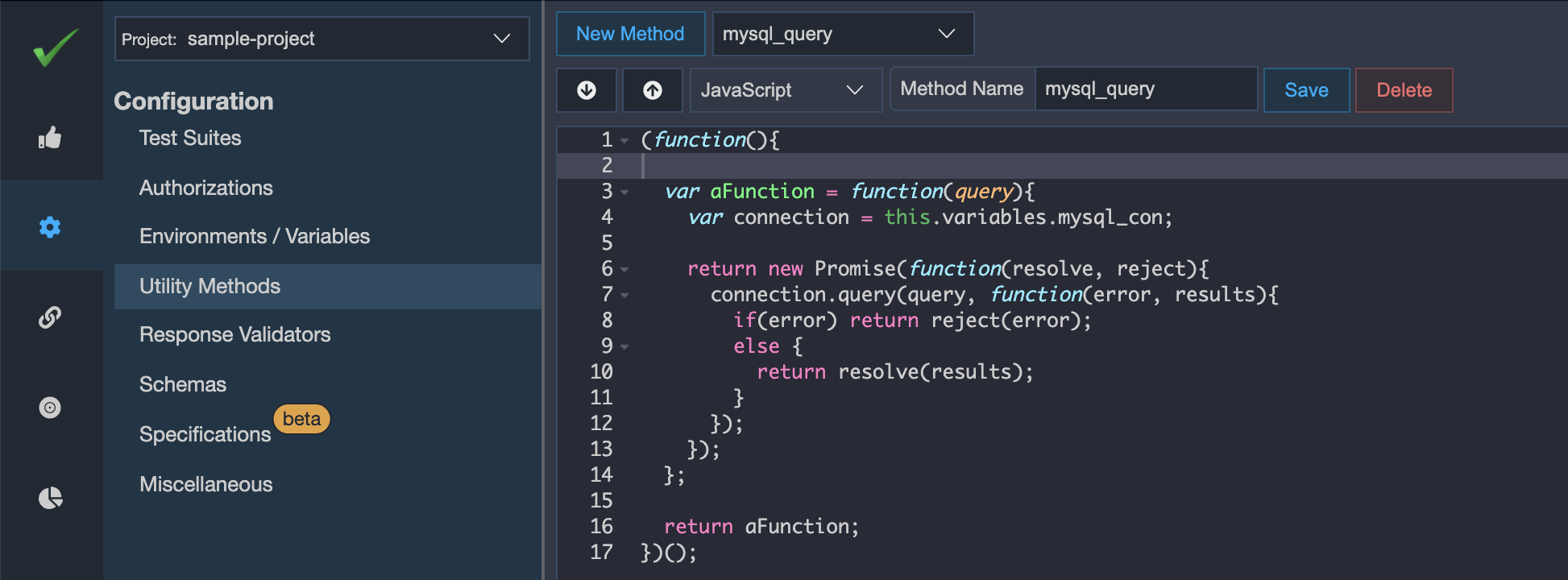

   Now create a utility method to execute the database query as shown in the figure below:



   You may use the following script for executing the MySQL Query:

   (function(){

     var aFunction = function(query){
       var connection = this.variables.mysql_con;

       return new Promise(function(resolve, reject){
         connection.query(query, function(error, results){
           if(error) return reject(error);
           else {
             return resolve(results);
           }
         });
       });
     };

     return aFunction;
   })();


   Note:

   1. You will need to use the Javascript Promise feature in order to return asynchronous results from utility methods.

5. Execute the database query and return results

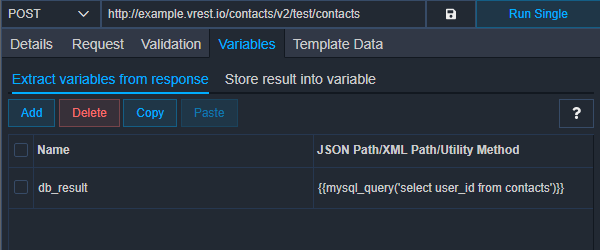

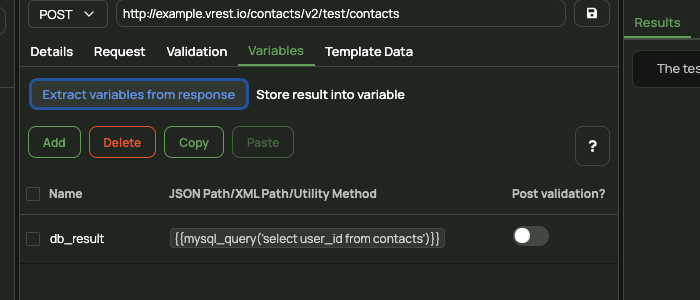

   Now you may execute the database query in the Variable Extractor tab and store the results in a variable as shown in the figure below:



   These extracted variables are available in the same request but only during the response validation phase.

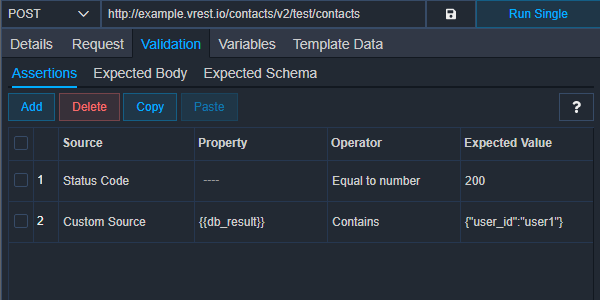

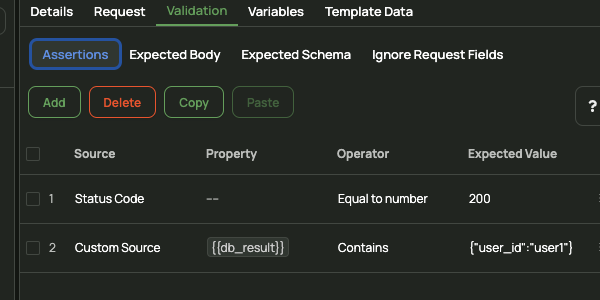

   And you may validate the database results in Validation tab using the Custom Source assertion as shown in the figure below:



   You may use any of the operators available to validate your database state.

So, in this way, you may validate the database state in vREST NG Application.
