# Install vREST NG Dashboard Service on your own premise

This guide will instruct you on, how you may install vREST NG Dashboard Service on your own premise. We use Docker image for easier setup of vREST NG Dashboard Service.

# Download

You may download the vREST NG Dashboard Service from the below link:

Download on-premise vREST NG Dashboard Service (opens new window)

# Pre-requisites

  1. Docker

# Installation

For setting up the vREST NG Dashboard Service, please follow the steps below:

  1. Unzip the downloaded gzip file using the command below:
gunzip /path/to/vrest-ng-dashboard-x.y.z.tar.gz
  1. Load the docker image using the command below:
docker load -i /path/to/vrest-ng-dashboard-x.y.z.tar
  1. Run the docker image For running the docker image, you may use the following sample docker-compose.yml file:
version: "3.8"
services:
  vrest-mongo:
    image: vrest-mongo:3
    container_name: vrest-mongo
    environment:
      - MONGO_INITDB_DATABASE=vrest_db
      - MONGO_INITDB_ROOT_USERNAME=root
      - MONGO_INITDB_ROOT_PASSWORD=secret
    volumes:
      - dashboard_db:/data/db
  vrest-dashboard:
    image: vrest-dashboard:latest
    container_name: vrest-dashboard
    depends_on:
      - vrest-mongo
    volumes:
      - dashboard_logs:/root/logs
    environment:
      - PORT=3002
      - BASE_URL=http://localhost:3004
      - DB=mongodb://vrest-mongo/vrest_db
      - MAIL_USERNAME=admin@example.com
      - MAIL_PASSWORD=mail_secret
      - MAIL_HOST=smtp.gmail.com
      - MAIL_PORT=465
      - MAIL_SECURE=true
      - DEFAULT_FROM=admin@example.com
      - DISABLE_SIGNUP=false
      - LOG_LEVEL=info
      - LOG_DIR=/root/logs
    ports:
      - 3004:3002
volumes:
  dashboard_db:
  dashboard_logs:

In the above sample docker-compose.yml:

  1. we created two volumes

    • dashboard_db which is responsible for database Data and
    • dashboard_logs which is responsible for server logs. You should set up scheduled backups of the dashboard_db volume in order to avoid any data loss due to any unforeseen events.

  2. And you will need to set the following environment variables:

Environment Variable Name Description Default Value
MONGO_INITDB_DATABASE Database Name for the Dashboard Service ----
MONGO_INITDB_ROOT_USERNAME Database username during initialization ----
MONGO_INITDB_ROOT_PASSWORD Database password during initialization ----
PORT vREST NG Dashboard Service Port Number 3002
BASE_URL vREST NG Dashboard Service public Base URL. This is a required field. Provide only the publicly accessible URL here. This URL will be used for licensing purposes. If you change this URL later then you will need to acquire a new license key. ----
DB vREST NG Dashboard Service DB Connection URL ----
DISABLE_SIGNUP Flag whether to disable the signup process or not false
LOG_LEVEL Log level for the generated logs. You may set it to error if you don't want additional logs. info
LOG_DIR Log Directory path for the generated logs. CWD/logs
MAIL_USERNAME Username information for the mail service ----
MAIL_PASSWORD Password information for the mail service ----
MAIL_HOST Host information for the mail service smtp.gmail.com
MAIL_PORT Port information for the mail service 465
MAIL_SECURE if true the connection will use TLS when connecting to the server. If false then TLS is used if the server supports the STARTTLS extension. In most cases set this value to true if you are connecting to port 465. For port 587 or 25 keep it false ----
DEFAULT_FROM The default from address to send mail (be sure that this email address is allowed to send mail through a specified server) ----

Once you have configured the above docker-compose.yml file, then run the following command to start the vREST NG Dashboard service:

docker-compose up

# Access the vREST NG Dashboard Service

Now, once vREST NG Dashboard Service has been started successfully, then just access the service in a browser using the public base URL which you have provided during the configuration.

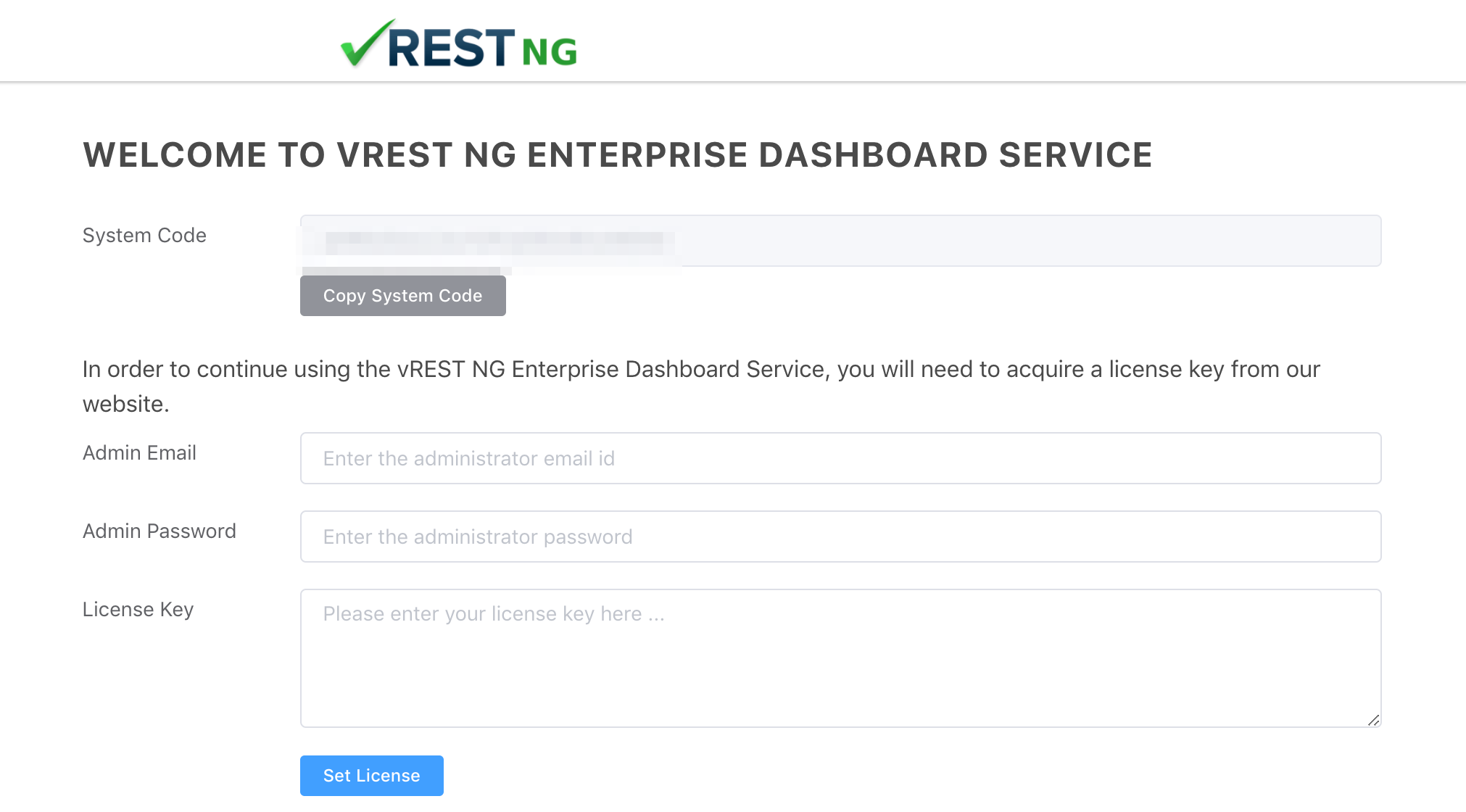

If you are accessing it for the first time, you will be prompted to set up the admin account and the license key as shown in the image below:

Please note that, for this admin account, we don't verify this email id but please provide a valid email id here, otherwise you won't be able to recover your password later if you forget it.

You may just acquire the license key as mentioned in the guide, Acquire License Key;

That's it.
