Azure DevOps Integration

This article will guide you on how you may integrate vREST NG with Azure DevOps via the vrest-ng-cli module.

Download configuration file

Please download the below file and rename it as azure-pipelines.yml. And add this file in the root directory of your source code repository.

1. If you are using NodeJS based project:

   Download Azure Pipeline File (via NPM) (opens new window)

2. If you are using other than NodeJS based project:

   Download Azure Pipeline File (via direct download) (opens new window)

Explanation

The process contains the following major steps in order to integrate the vrest-ng-cli module. The steps are written on the basis of the ubuntu machine.

1. Download and install vREST NG CLI binary:

   First, download and install the vREST NG CLI module.

   Via NPM way

   ...
   # [Use this step] To define the vrest-ng-cli version to be downloaded
   variables:
     vrest_version: '2.0.0' #vrest-ng-cli version to be downloaded

   steps:
   # [Use this step] To install vrest-ng-cli binary as an npm module
   - task: NodeTool@0
     inputs:
       versionSpec: '10.x'
     displayName: 'Install Node.js'

   # [Use this step] Install vrest-ng-cli as a npm module
   # Change version if you would like to install different version
   - script: npm install -g vrest-ng-cli@$(vrest_version)
     displayName: 'Install vrest-ng-cli'
   ...


   Via Direct Download way

   ...
   # [Use this step] To define the vrest-ng-cli version to be downloaded
   variables:
     vrest_version: '2.0.0' #vrest-ng-cli version to be downloaded
     vrest_uversion: '2_0_0' #underscore variant of vrest-ng-cli version

   steps:
   # [Use this step] To check whether the binary already exists or not
   - bash: |
       if [ -f /home/vsts/.cache/vrest/vrest-ng-cli ]; then
         echo "##vso[task.setVariable variable=VREST_CLI_EXISTS]true"
       else
         echo "##vso[task.setVariable variable=VREST_CLI_EXISTS]false"
       fi

   # [Use this step] Download and Install vrest-ng-cli from Github Release
   # Change version if you would like to install a different version
   # Change OS if you would like to install on a different operating system
   - script: |
       mkdir -p /home/vsts/.cache/vrest
       wget -O /home/vsts/.cache/vrest/vrest-ng-cli -q https://github.com/Optimizory/vrest-ng-cli/releases/download/v$(vrest_version)/vrest_ng_cli_linux_$(vrest_uversion)
       chmod +x /home/vsts/.cache/vrest/vrest-ng-cli
     displayName: 'Download and Install vrest-ng-cli binary'
     condition: eq(variables.VREST_CLI_EXISTS, 'false')
   ...


2. Execute vREST NG Tests

   To execute the vREST NG tests, use the following code. For detailed information on the vrest-ng-cli command-line options, please follow this guide link.

   ...
   # [Use this step] To run vREST NG written Tests
   - script: vrest-ng-cli run --projectdir=test/scenario-tests --logger=xunit
     displayName: 'Run vREST NG Tests'
   ...


   Note: If vrest-ng-cli is not in path then provide the absolute file e.g. /home/vsts/.cache/vrest/vrest-ng-cli

3. Publish Test Results

   Finally, publish the test results produced by xunit logger of the vrest-ng-cli module. By default vrest-ng-cli module exports the report in the vrest_logs/logs.xml of the current working directory. So, we can use those generated reports to publish them in Azure DevOps.

   ...
   # [Use this step] To publish test results to azure pipelines
   - task: PublishTestResults@2
     inputs:
       testResultsFormat: 'JUnit'
       testResultsFiles: 'vrest_logs/logs.xml'
       searchFolder: '$(System.DefaultWorkingDirectory)'
     condition: succeededOrFailed()
   ...


Reporting

vrest-ng-cli module generates the following types of reports in Azure DevOps pipelines:

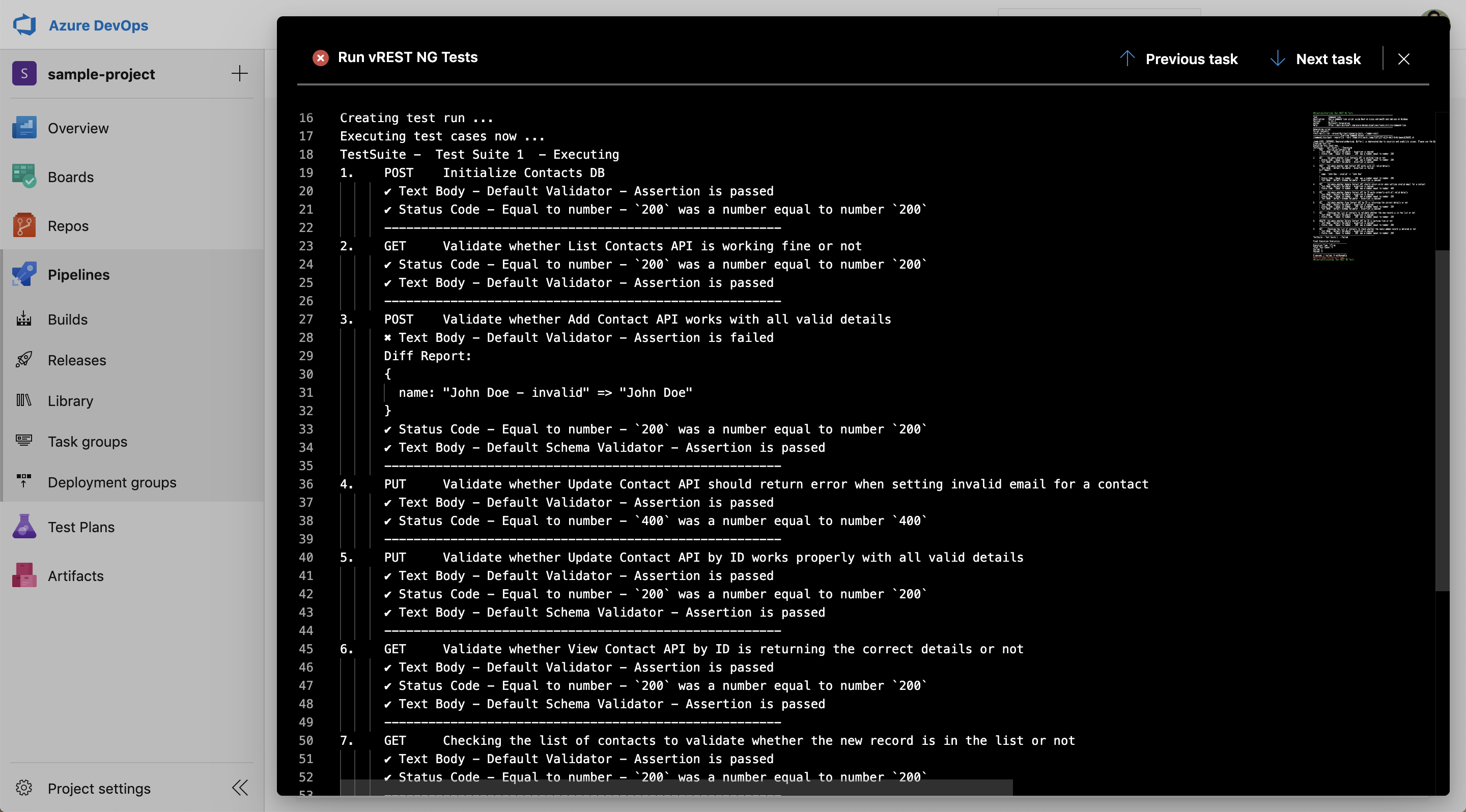

1. Console Report

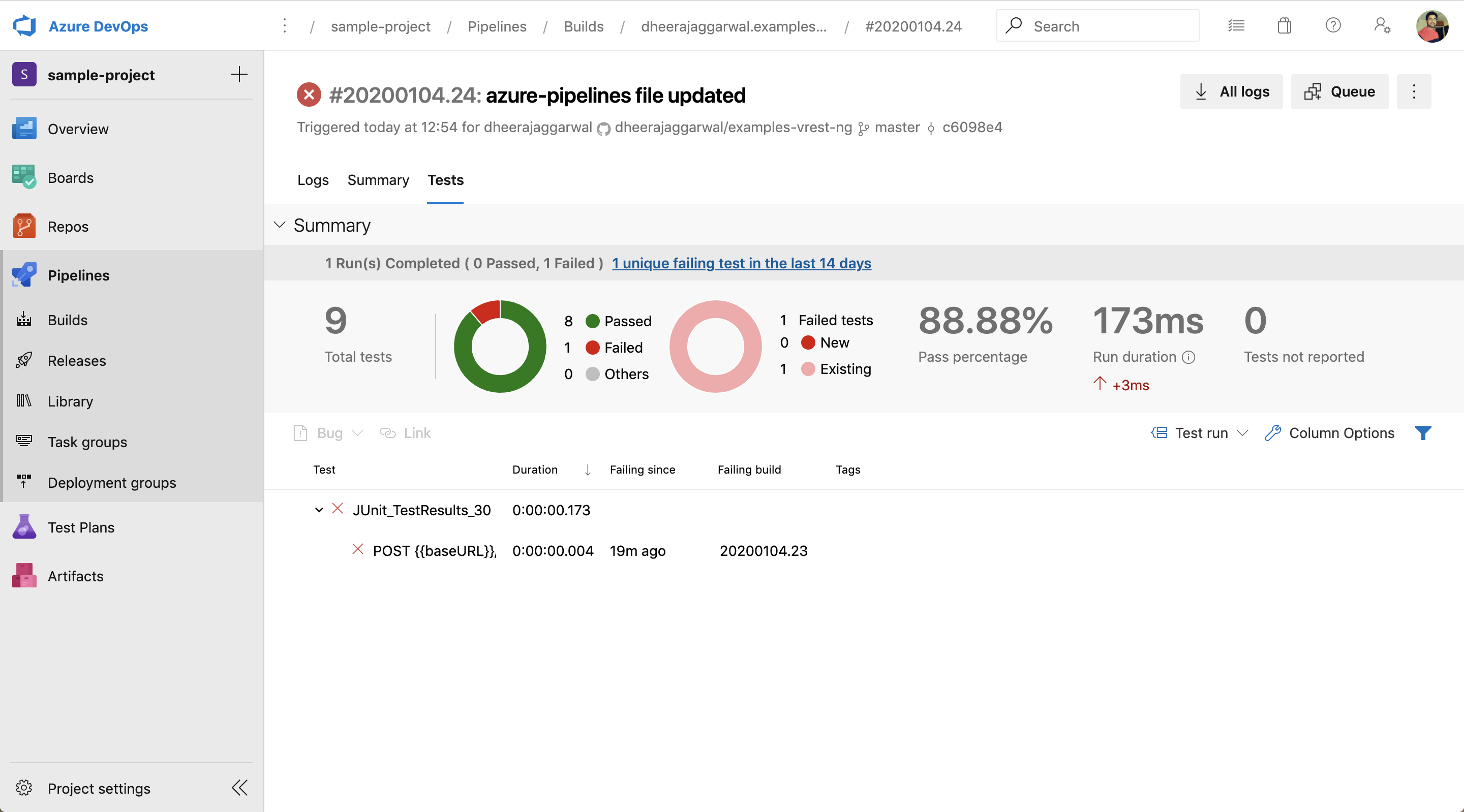

2. Test Run Results

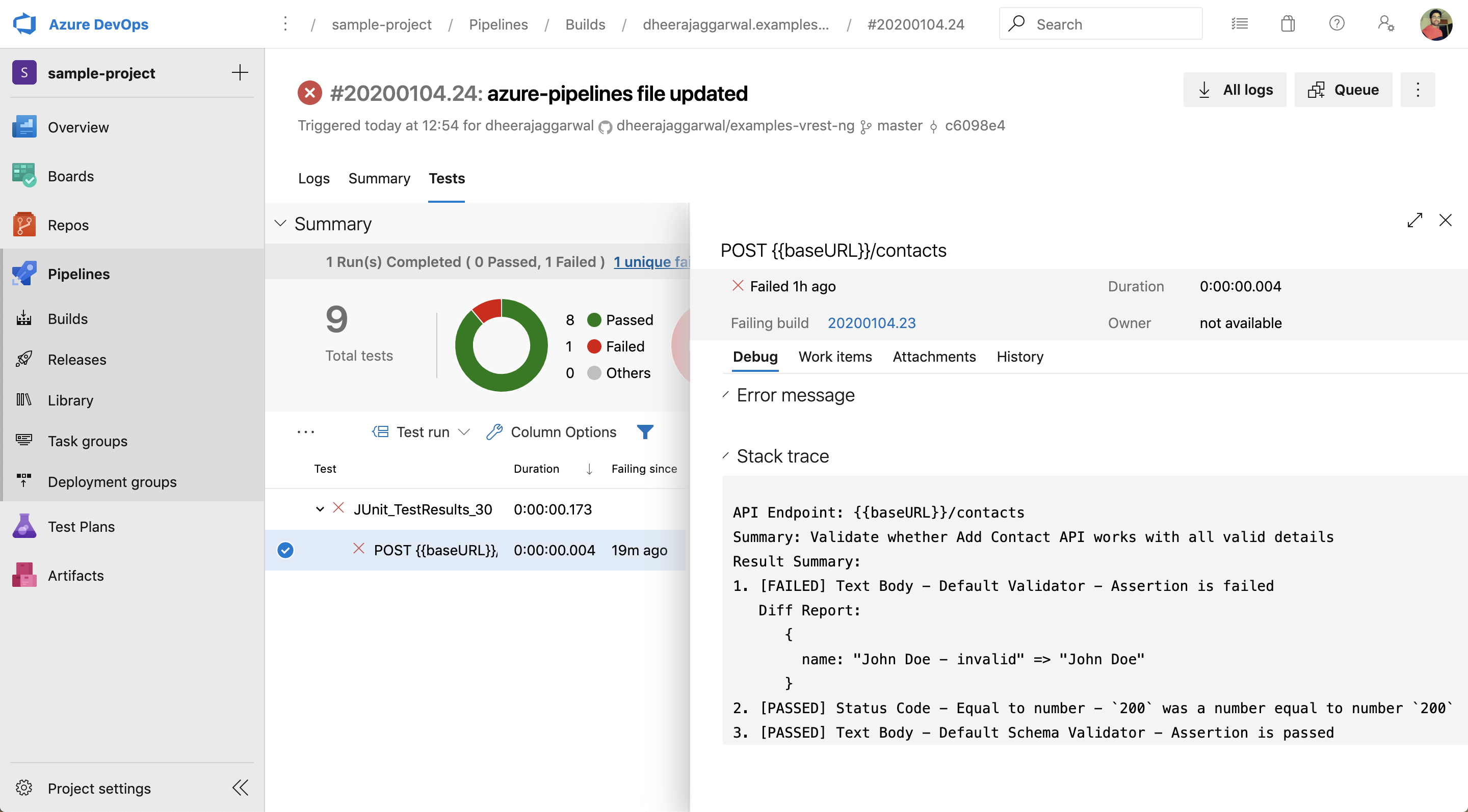

3. Single Test Case Failure Report
